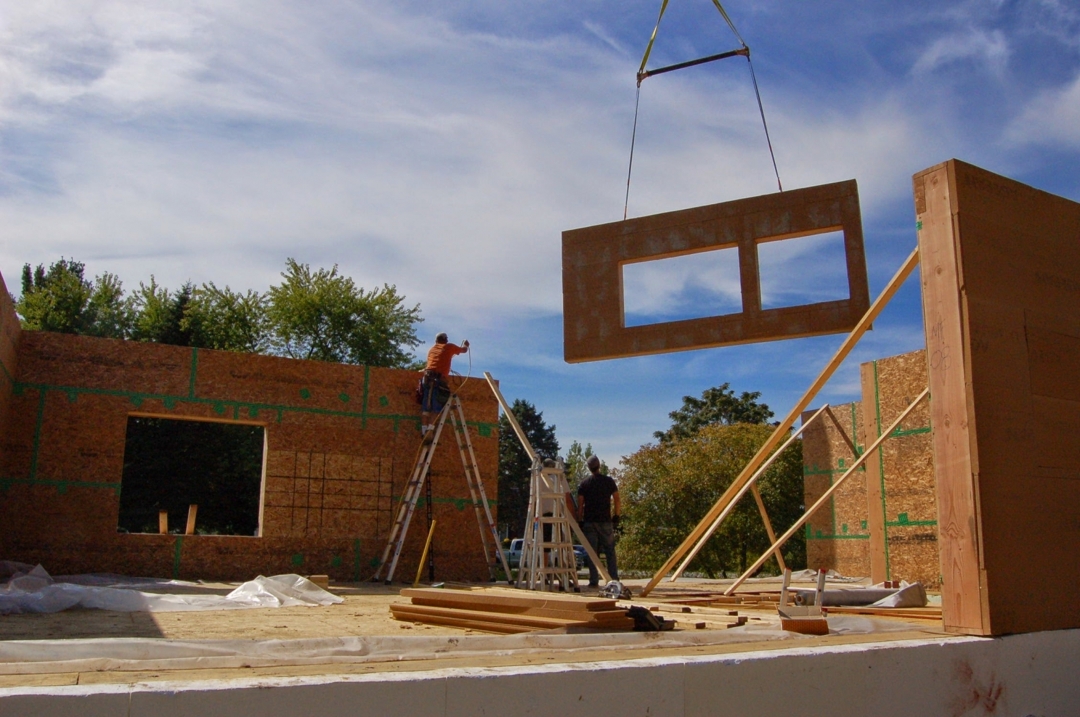

The A-Haus was assembled with pre-insulated wall and roof panels
This single-family home, nicknamed the “A-Haus,” is the first house in Michigan to be certified by the Passive House Institute U.S. (PHIUS). The striking building is situated on nearly three acres of rural land, bordered by woods and farm fields, in Freeland, Michigan. (To read about a similar project, see the GBA article, “Michigan Gets Its First Passivhaus.”)
The A-Haus was a project of a Detroit-based prefab Passive House component manufacturer called Phoenix Haus. The Passive House method relies on superinsulation, airtight detailing, and thermal-bridge-free construction to achieve extremely low energy use. The home features a continuous fresh air ventilation system using a Zehnder Comfo 550 energy-recovery ventilator (ERV). According to the Passivhaus Institut, the Zehnder Comfo 550 has an efficiency rating of 84%.
The A-Haus has 3 bedrooms, 2½ bathrooms, and a cozy finished third-story loft. “We chose a piece of land that complemented the style of the house,” said Hilde McDonald, owner of Phoenix Haus. “The rolling hills, south-facing exposure and rural setting made an ideal spot for a Passive House home.”
The A-Haus was named in honor of Hilde’s father, Anton Cech. Anton’s story is one for the history books: As a penniless German immigrant, he traveled as a stowaway to Brazil at the age of 16. Three years later he came through Ellis Island with nothing to his name but the clothes he wore on his back. In 1936, in the midst of the Great Depression, he started his own scale business (in spite of having only an eighth-grade education), and lived to share his incredible stories with his grandchildren. He died at the age of 105.
A pergola and an eckbank
Completed in April 2016, the A-Haus features a 45-foot cedar pergola breezeway connecting the home to a two-door detached garage. With a protected courtyard for entertaining guests in the summer months, a refrigerated wet bar, and a corner kitchen eckbank — a tribute to the owner’s German heritage — comfort, beauty and functionality are the main principles of its design. Visitors will also notice small sections of the home’s frame when they look up: three Douglas fir glulam beams are part of the home’s structure.
Phoenix Haus wanted to bring Passive House science to the Midwest and to introduce homeowners to the numerous benefits (for both occupants and the environment) of the building standard. Bill McDonald, principal of Phoenix Haus, conceived the idea of fabricating the wall, roof, and floor panels in a controlled environment as a solution for the high cost and intensive labor often associated with Passive House buildings. “Europeans have been building using components for years,” said McDonald. “I knew we could take that fundamental building science and bring it to the Midwest. Component building is ideal for the Passive House standard because such a high level of precision is necessary and can be easily accomplished in a controlled setting.”
This component building process began behind a computer, using powerful modeling software. A 3D CAD model assured the highest level of accuracy before, during, and after the design process. Once completed, this model interfaced with a CNC machine which cut the lumber for the home. Each step of this process supported the building’s energy performance. After the package of wood parts was cut, it was sent to the Phoenix Haus production facility in Detroit.
The wall and roof panels are insulated with cellulose
A few characteristics make the Phoenix Haus system stand out. The home’s envelope includes a continuous thermal insulation layer that is close to airtight. The envelopes encloses the 6½-foot-high crawlspace as well as the second and third floors. Due to a ledger detail specified for the floor systems, these layers remain continuous and uninterrupted.
The wall and roof panels were insulated at the factory with dense-packed cellulose. The 2×12 Douglas fir studs and the 16-inch-deep TJI rafters provide cavities with room for R-51 and R-71 insulation, respectively. Two-inch-thick Agepan fiberboard sheathing provides some additional exterior insulation.
The wall panels are “vapor diffusion open,” allowing moisture to escape easily. Because the water-resistive barrier (WRB) is pre-installed on the wall panels at the factory, the home was weather-tight within 24 to 72 hours of erection, preventing inclement weather from disrupting construction. All panels are structural.
“Homeowners’ greatest misconceptions come from their belief that pre-fabricated components either limit their ability to be creative or are low-quality — this is totally not the case,” said McDonald. “We can deliver the utmost quality and performance and keep costs low because of our production facility that runs 356 days a year, despite harsh weather, combined with our innovative assembly technique. We’re flipping the pre-fab stereotype on its head.”
Custom designs are possible
The Phoenix Haus system, unlike typical modular or pre-fab construction, does not limit homeowners’ creative wishes during the design process. So long as the Passive House envelope includes superinsulation, airtight detailing, and thermal-bridge-free construction details, it’s up to the clients to choose their desired fit and finish. Phoenix Haus chose fiber-cement siding and classic ribbed metal roofing for the A-Haus.
The A-Haus is one of three Phoenix Haus Design Templates for 2016. The most cost-effective and affordable route, especially for Passive House, comes when using a Design Template approach: pre-engineered and pre-modeled Passive House templates provide a springboard for clients to tweak and change floor plans to whatever they wish. It also saves them time and money, especially by avoiding an expensive custom design fee.
Triple-glazed windows
The A-Haus has a total treated floor area of 3,234 square feet. Windows are Intus Eforte vinyl tilt/turns with triple glazing. The exterior doors are also vinyl units from Intus.
The home itself is oriented to favor southern exposure. Roof overhangs shade the south windows during the summer. The A-Haus is located in Climate Zone 5B, and has (under the PHIUS system) a specific space heating demand of 4.46 kBTU/(ft2-yr).
The home is outfitted with all LED bulbs, a Bosch ventless clothes dryer, a Kitchen-Aid induction stove. Two Mitsubishi MSZ-FE09 minisplits provide space heating and cooling. Domestic hot water is provided by a Stiebel Eltron Accelera 300 heat-pump water heater located in the crawl space. The crawl space has a 4-inch-thick concrete slab over a 12-inch-thick layer of horizontal EPS insulation.
The A-Haus passed its final blower door test at 0.6 ach50.
Weekly Newsletter
Get building science and energy efficiency advice, plus special offers, in your inbox.
Lessons Learned
Shipping vertically
On this home, all panels were shipped horizontally or (using industry jargon) “flat packed.” This proved cumbersome and time-consuming — a wide load permit was necessary, slight damage was inevitable during shipping, and the crane operator’s time was not used well. However, it proved to be a great learning opportunity. To fix this, Phoenix Haus now ships everything vertically via a specialized German trailering system. The Germans really do have it nailed down!
Design is everything
Spending enough time during the onset of the project and working with experienced architects, especially those trained in Passive House principles, really means a world of difference when it’s time for construction. These efforts in theory and concept translate to a very well thought-out and well-engineered building. Case in point: window details were severely lacking on this house and a solution for flashing and trim work had to be worked out on-site.
A clearer solution for mechanical systems is desired
Most residential HVAC contractors, especially in the U.S., still use a “cut & paste” approach when it comes to deciding which heating, cooling, ventilation, and hot water equipment to install. I regret not installing a pre-heat ground loop for the Zehnder ERV fresh air intake — this would have reduced our pre-heat function substantially, especially for our cold climate. Also, I’m excited to see what manufacturers are now designing for the U.S. market when it comes to units that combine heating and cooling with energy recovery. The CERV by Build Equinox seems to be the closest right now.
General Specs and Team
| Location: | Freeland, MI |
|---|---|
| Bedrooms: | 3 |
| Bathrooms: | 2.5 |
| Living Space: | 3234 |
Designer: Sedgwick & Ferwerda Builder: Phoenix Haus Energy consultant: Bill McDonald
Construction
Foundation: Crawl space with ICF walls
Foundation insulation: Under the crawl space slab, 12 in. of horizontal EPS (R-50.8); ICF walls have 2 in. EPS on exterior and 2 in. EPS on interior, plus an additional 6 inches of EPS on the exterior side of the ICF walls; above-grade foam is protected with metal flashing.
Above-grade walls: Factory-built wall panels with 2x12 studs, sheathed on the exterior with 2-in. Agepan fiberboard sheathing and on the interior with 5/8-in. OSB; supplemented by an interior 2x4 service cavity. Panel seams are sealed on the interior with Siga Rissan tape, and on the extrerior with Siga Wigluv tape.
Water-resistive barrier: Siga Majvest with taped seams.
Siding: Horizontal fiber-cement siding.
Wall insulation: 2x12 studs and 2x4 service cavity are both insulated with dense-packed cellulose; fiberboard sheathing provides about R-5; total wall R-value is R-51.
Roof: Factory-built roof panels with 16-inch TJI rafters sheathed on the exterior with 2-inch Agepan fiberboard and on the interior with 3/4-inch OSB, supplemented by a 2x6 interior service cavity; roof panels are supported by a glulam structural ridge beam.
Roof insulation: 16-inch rafters and 2x6 interior service cavity are both insulated with dense-packed cellulose (R-71).
Roofing: Exposed-fastener steel roofing over Siga Majcoat roofing underlayment.
Windows: Intus Eforte vinyl tilt/turns with triple glazing; U-factor = 0.15.
Doors: Glazed vinyl doors from Intus; U-factor = 0.16.
Space heating and cooling: Two Mitsubishi MSZ-FE09 minisplits.
Domestic hot water: Stiebel Eltron Accelera 300 heat-pump water heater.
Below Grade Foundation: R-50.7.
Mechanical ventilation: Zehnder Comfo 550 ERV.
Domestic hot water: Stiebel Eltron heat-pump water heater.
Energy Specs
Space heating demand: 4.46 kBTU/(ft2-yr).
Specific primary energy demand: 15.8 kBTU/(ft2-yr).
Design space heat load: 12,441 BTU/h.
Blower-door test results: 0.6 ach50.
